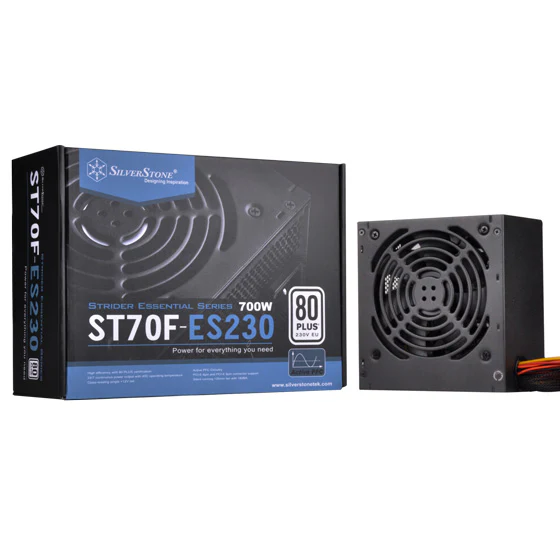

Product image 1
Product image 2
Product image 3
Product image 4

SilverStone ST70F-ES230 80 PLUS WHITE 700W ATX power supply

  • ST70F-ES230
    80 PLUS 230V EU 700W ATX power supply
    • High efficiency with 80 PLUS certification
    • 24/7 continuous power output with 40℃ operating temperature
    • Class-leading single +12V rail
    • Active PFC Circuitry
    • PCI-E 8pin and PCI-E 6pin connector support

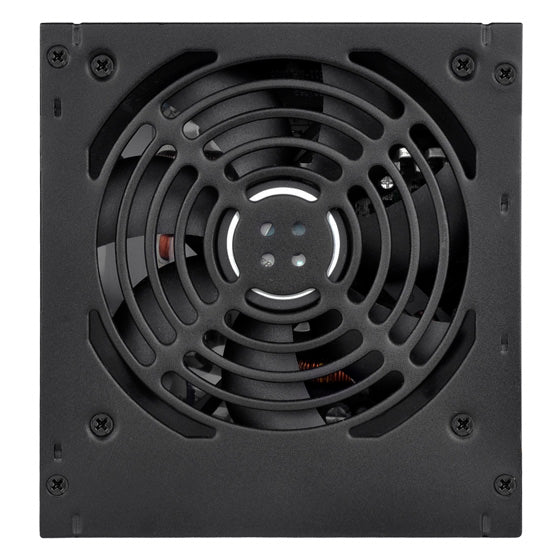

    • Silent running 120mm fan with 18dBA
    388-per-liter 80plus-230
    VERSION







    Designed for 80 PLUS level of efficiency to reduce wasted heat and save on electricity.   Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.



    Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.   Compact 140mm depth design for easier installation in small from factor.

    Product Specifications
    Product No.
    SST-ST70F-ES230
    Color
    Black（Lead-Free Paint）
    Max. DC Output
    700W
    Power density
    388W per liter

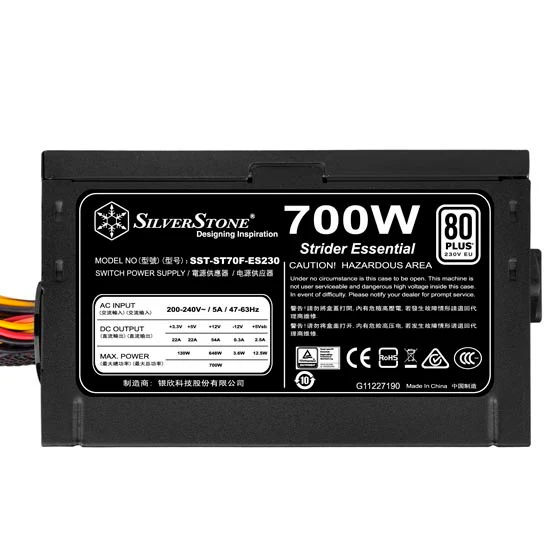

    Load Range
    Output +3.3V +5V +12V +5VSB -12V
    Max.(Amps) 22A 22A 54A 2.5A 0.3A
    Peak (Amps) / / / / /
    Min.(Amps) 0A 0A 0A 0A 0A
    Range (%) ±5% ±5% ±5% ±5% ±10%
    Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
    Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
    Combined +3.3V & +5V
    130W
    Combined +12V
    648W
    Input Voltage
    180V~264V
    Input Frequency Range
    47Hz~63Hz
    PFC
    Active PFC（PF>0.9 at full load）
    Efficiency
    82% ~ 85% at 20% ~ 100% loading
    MTBF
    100,000 hours
    Operating temperature
    0°C ~ 40°C
    Protection
    Over power protection

    Over voltage protection

    Short circuit protection
    Connectors
    1 x 24 / 20-Pin motherboard connector（500mm）

    1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）

    4 x 8 / 6-Pin PCIE connector（"500mm / 150mm" x 2）

    4 x SATA connector（"500mm / 150mm" x 2）

    3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）

    1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）
    Cooling System
    Single 120mm silent fan
    Noise Level
    18 dBA minimum
    Certification
    80 PLUS
    Form factor
    ATX

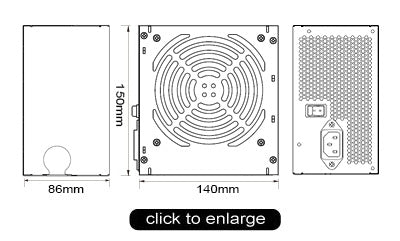

    Dimension
    150 mm (W) x 86 mm (H) x 140 mm (D)
    Weight
    1.43 kg
    Other
    ● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
